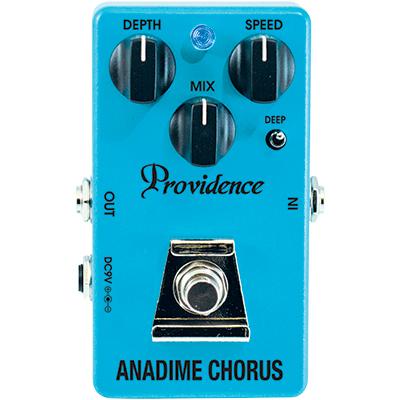

The ADC-4 Anadime Chorus is an analog chorus effect that uses a BBD (Bucket Brigade Delay) device. This versatile chorus effect is ideal for everything from moody arpeggios, to flowing chord progressions, to powerful riffs and solos.
Even though the effect output is mono, it delivers a spacious sense of width and depth as well as warmth and thickness that only an analog chorus can achieve. The 3-way MODE Switch Enables to Create A Sound With Variety
A 3-position DEEP mode switch provides variations in the perceived dimensional depth.
New Mix Function Knob A MIX control adjusts the mix ratio between the direct and modulated sound. The MIX control can be used in conjunction with the DEPTH control to create fine effect gradations ranging from intense swirl to gentle undulation.
S.C.T Circuit In standard "true bypass" circuits the instrument signal passes through two switch contacts when bypassed. In the Anadime Chorus the signal only passes through one switch contact when bypassed (Single Contact True Bypass), for unprecedented signal quality as well as reliability.
D.C.G. Circuit A Double Contact Grounding Circuit ensures that the sleeve of the plug inserted into the output jack is grounded at two contact points. Increased ground contact area minimizes the possibility of intermittent contact, while also contributing to maximum sonic quality.
Multi-function LED In addition to indicating the pedal's on/off status, the ADC-4 LED provides effective visual battery power monitoring. When the battery voltage drops below 7 volts the LED will become dimmer and begin to go out. The effect will still operate at this voltage, but to ensure optimum performance the battery should be replaced as soon as possible.
Controls: DEPTH, SPEED, MIX, DEEP Jacks: Standard 1/4-inch phone jacks (Input/Output), DC9V Input jack (AC adaptor jack) Power: 9V battery (1), AC adaptor Power consumption: DC9V approx. 26mA (with effect turned ON) Size: 115(D) X 73(W) X 50(H)mm Weight: Approx. 250g (without battery)
