Earthquaker Devices

EARTHQUAKER DEVICES Tentacle

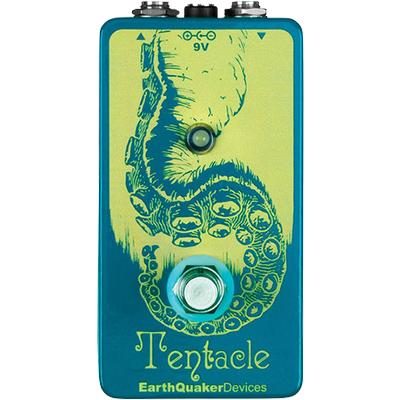

Hello champ! Thank you for purchasing the Tentacle™ from EarthQuaker Devices brand effect pedals. The Tentacle is a classic analog octave up effect. It is the very same octave from our beloved Hoof Reaper pedal. We got so many requests to make this a stand-alone unit that we just had to make it a reality. You can now add an excellent, swelling octave up to anything your heart desires! Pair it with your favorite fuzz, strap on a headband and unleash your inner Jammy Hendrix. Put it in front of another octave up and blow your amps mind. Throw it in the effects loop of a delay and marvel at what happens (then tell us, we’d like to know too). What’s better? It has no controls! Nothing to worry about at all here, just hit the switch and go for it. The Tentacle is an analog octave up, the effect will become much more pronounced when using your neck pickup and playing above the 12th fret.

Controls

You don’t control me.

Measures

4.55″ x 2.40″ x 1.95″

Flexi-Switching

This device features Flexi-Switch™ Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

  • For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
  • For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power

Tentacle should be powered by a standard 9-volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. Do not run at higher voltages!

Current Draw: 2mA

Input Impedance: 100K

Output Impedance: <1K
