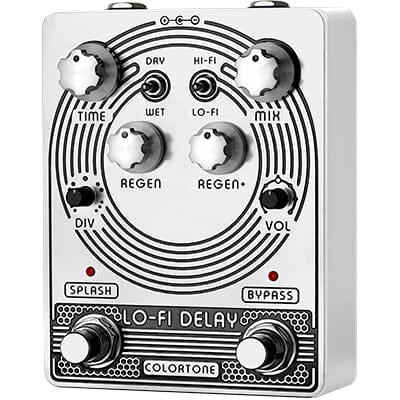

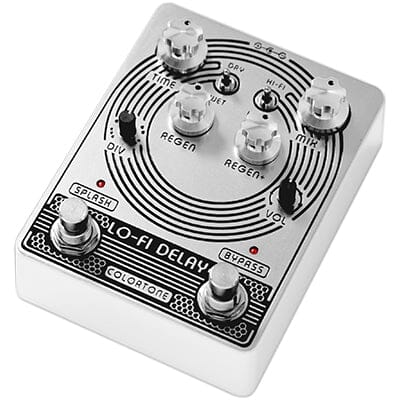

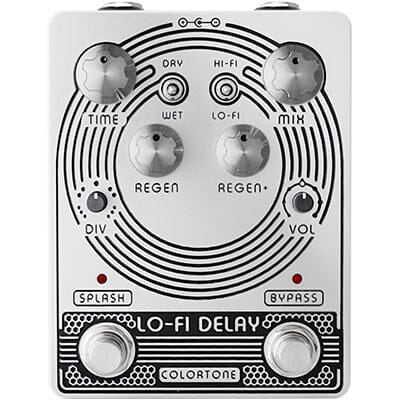

COLORTONE Lo-Fi Delay

Colortone Lo-Fi Delay is a grainy lo-fi, old-school analog-sounding delay with additional momentary oscillation feedback switching options. Controls include DelayTime, Regen, Feedback, Mix and a ‘Splash’ footswitch to momentarily send the delay into a predetermined amount of regenerative feedback.

Optionally the pedal can be in quiet '+' mode where a delay is only activated when the momentary 'Splash' footswitch is depressed. Great for adding dub style accents to certain stabs or phrases.

CONTROLS

DELAY
Delay time
MIX
Mix the amount of wet and dry signal
FEEDBACK
Adjust the regeneration time of the Delay
FEEDBACK +
Adjust the regeneration time of the Delay when ‘Splash’ switch depressed

MODE Switch
Choose between normal and ‘+’ splash modes.

Normal ‘o’ mode has the delay in normal operation and the splash footswitch when depressed forces the delay into oscillation mode which is predetermined by the Feedback + knob.

‘+’ mode has the Delay in silent operation mode and delays are only activated when the momentary Splash footswitch is depressed. Can be used for Dub style accents, Splashes of ambient delay or adding momentary washes of delay.

SPLASH Footswitch
Momentary Footswitch temporarily forcing the pedal into a momentary feedback mode set by the Feedback+ knob.

BUILD

Switchcraft 1/4” Jacks
Hand made Acid Etched faceplate
True Bypass FootSwitch with brushed aluminium nut
Red Indicator LED
Hand Brushed aluminium enclosure

Power Consumption = 60mA
