DR. SCIENTIST Spectrum Analyzer

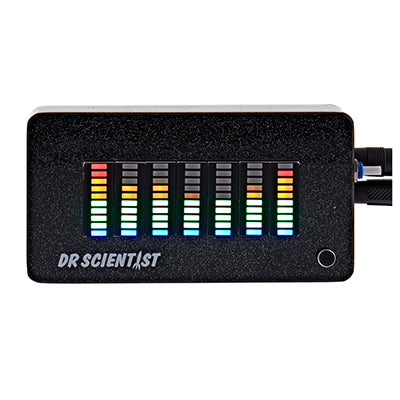

In 2219, Dr. Scientist’s sister, Professor Scientist, patented a method for turning information into food, revolutionizing humanoid societies: without the need for nourishment, information became the world’s most important commodity. It was traded in markets, in bazaars and on the Futurenet. Dr. Scientist took advantage by developing the Spectrum Analyzer, a device which reads audio information and displays it in seven frequency bands, from 63Hz to 16kHz, represented by LEDs. It reads information from any source that can be plugged into it—a computer, a guitar, a synth, a cellphone—or it can read the sound around it through a built-in microphone. Musicians hungry for information can see their music in realtime, represented by light.


  • Operation:Audio In, Audio Through, TRS 1/8"
  • Power Requirements:9VDC @ 250mA, 2.1mm plug, center positive
  • Input Impedance:10MΩ tap-off 'looking' at audio signal
  • Knobs:Sets the level of the LED display, adjust so display lights all bars
  • Pushbutton Switch on back of box:Chooses between Line Level in put or front panel microphone input
  • Trimpots on back of box adjust the display's idle flicker and brightness
